LED Driving Lights
TC-R100A
9" LED driving light with DRL
- Power
- 100W
- Output
- 9,000 lm
- Beam
- 700 m
- Voltage
- 12–24V
- Sealing
- IP68
- Warranty
- 5 years
What it is for
Nine inches of driving light with the daytime strip built into its face. It goes on the bar or the bumper of something that covers ground after dark — a truck, a tray-back, a tourer — and it runs as a daytime light on the highway and a spot when the road empties out. The strip switches between white and amber, so one lamp suits a road-registered truck and a paddock hack.
A hundred watts, 9,000 lumens, sealed to IP68 and backed by five years. It runs 12 to 24 volts, so one part number covers a 12V ute and a 24V prime mover without a converter.

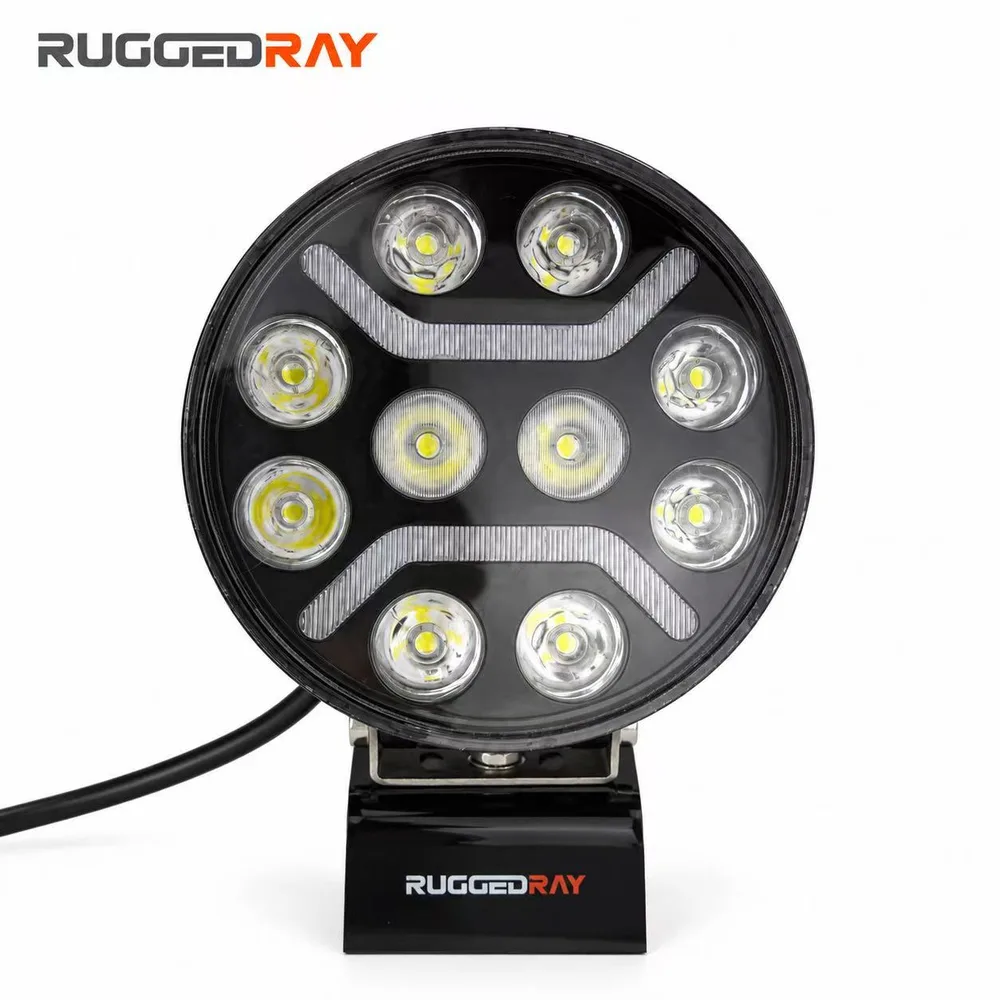

The TC-R100C is the other 9-inch 100W lamp on this line, and the build sheet gives the two of them the same figures in every column — same power, same output, same beam distance, same DRL. The difference is the face. This one runs round projector lenses with the daytime strip laid across them as two chevrons; the TC-R100C runs hexagonal lenses with a diamond strip through the centre and a light pipe up each side. Pick on the face, because the numbers will not do it for you.
Specifications
| Model | TC-R100A |
|---|---|
| Type | 9" LED driving light with DRL |
| Power | 100W |
| Luminous flux | 9,000 lumens |
| Beam distance | 700 m (1 lux) |
| Housing size | 9 inch |
| Operating voltage | 12–24V DC |
| Ingress protection | IP68 |
| Daytime running light | Yes — switchable white or amber |
| Warranty | 5 years |
Manufacturer specification, as supplied
9" LED driving light with DRL . High power LED : 100W . Volt : 12-24V . Size : 9 inch . Waterproof rate: IP68 . Lumen : 9000 . Lux at : 700M . DRL : Switch to White or Yellow . 5 Y
Questions buyers ask
- What voltage does the TC-R100A run on?
- 12–24V DC, so one part number covers 12V 4WDs and 24V trucks without a converter.
- How far does the beam actually reach?
- 700 metres to the 1-lux point — the industry convention for beam distance. That is the distance at which you can still pick out an obstacle, not the distance at which you can read a number plate.
- Which LED does it use, and why does that matter?
- The emitter brand for this model is being confirmed. Where we use Cree, Osram or JingNeng emitters we say so by name, because it is the difference that shows up two years in.
- Is it sealed well enough for water crossings?
- Rated IP68. Mount it where it will see spray, dust and pressure washing.
- What is covered by the warranty?
- 5 years against manufacturing defects, from date of shipment.
- Do you supply dealers and workshops?
- Yes. Volume pricing, OEM packaging and marketing assets are available for 4WD shops and distributors. Tell us your market and typical order size and we will come back with terms.
Certification
No CE, FCC or RoHS certificate is on file for this line, and we do not list a mark we cannot produce the paperwork for. Certification can be arranged where an order needs it, agreed in writing before anything is committed. Buyers in the United States and Australia rarely ask for these marks on auxiliary lighting — if your market requires them, tell us what you have to meet.
