LED Driving Lights
TC-R140

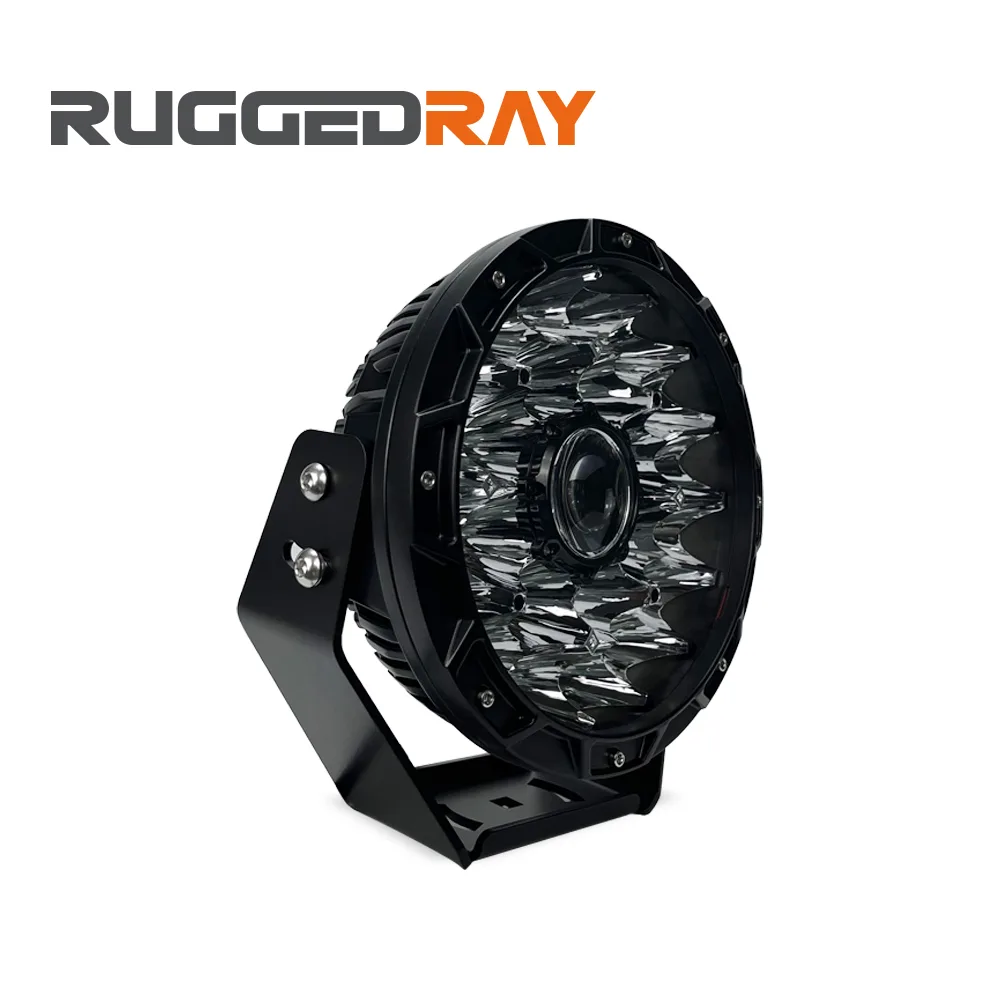

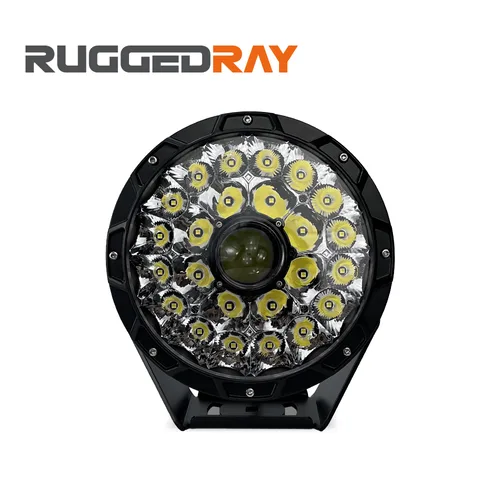

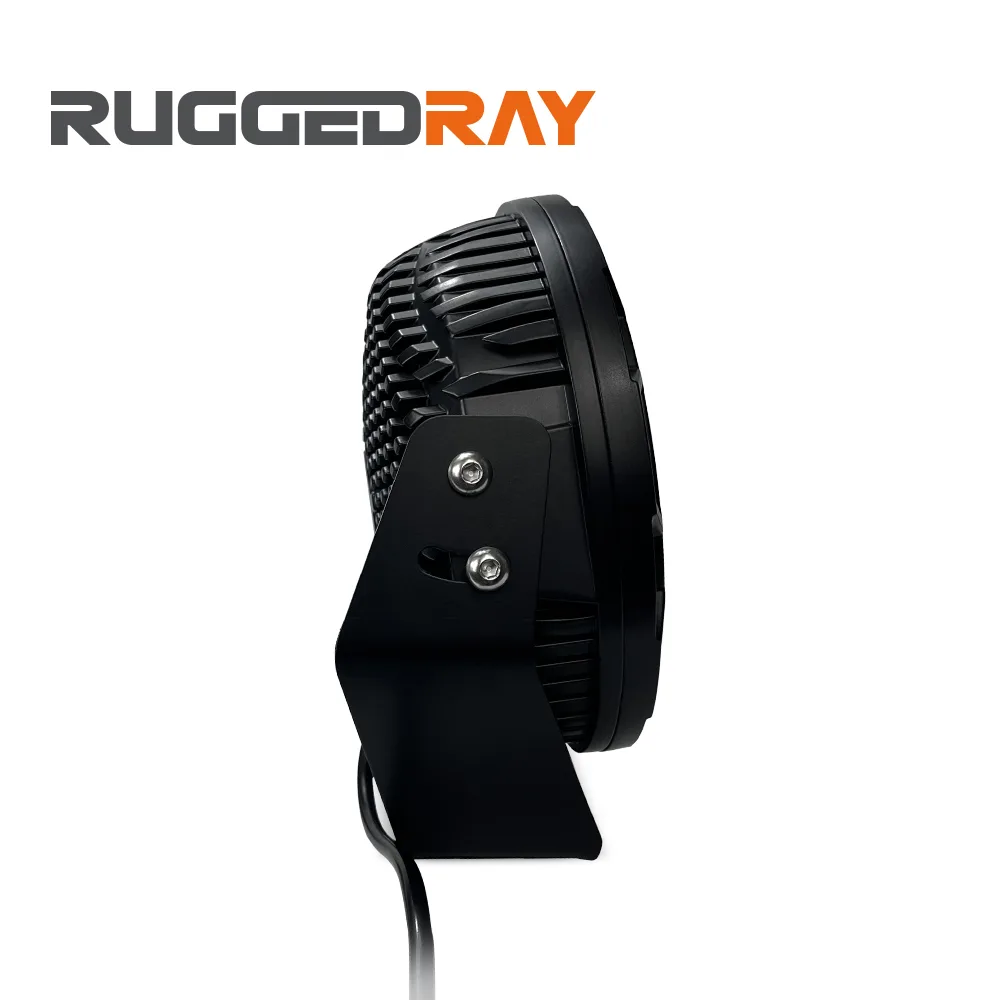

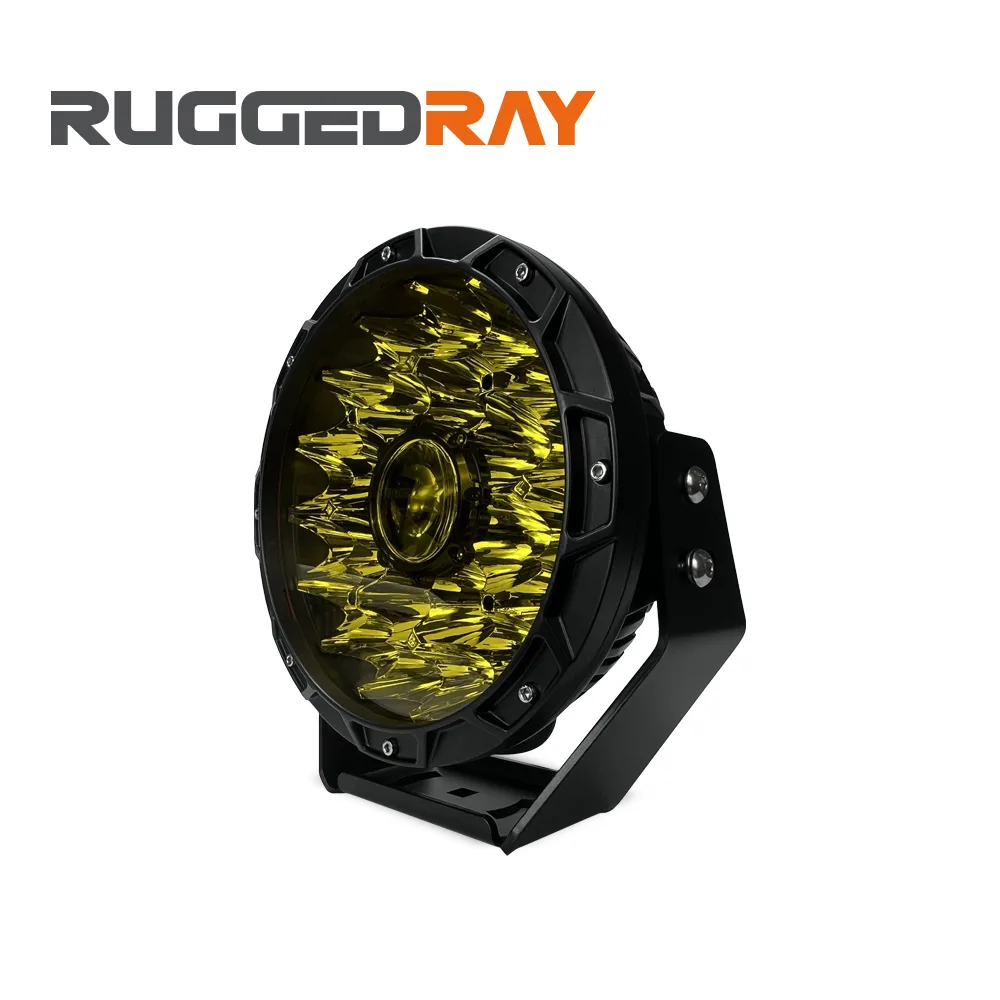

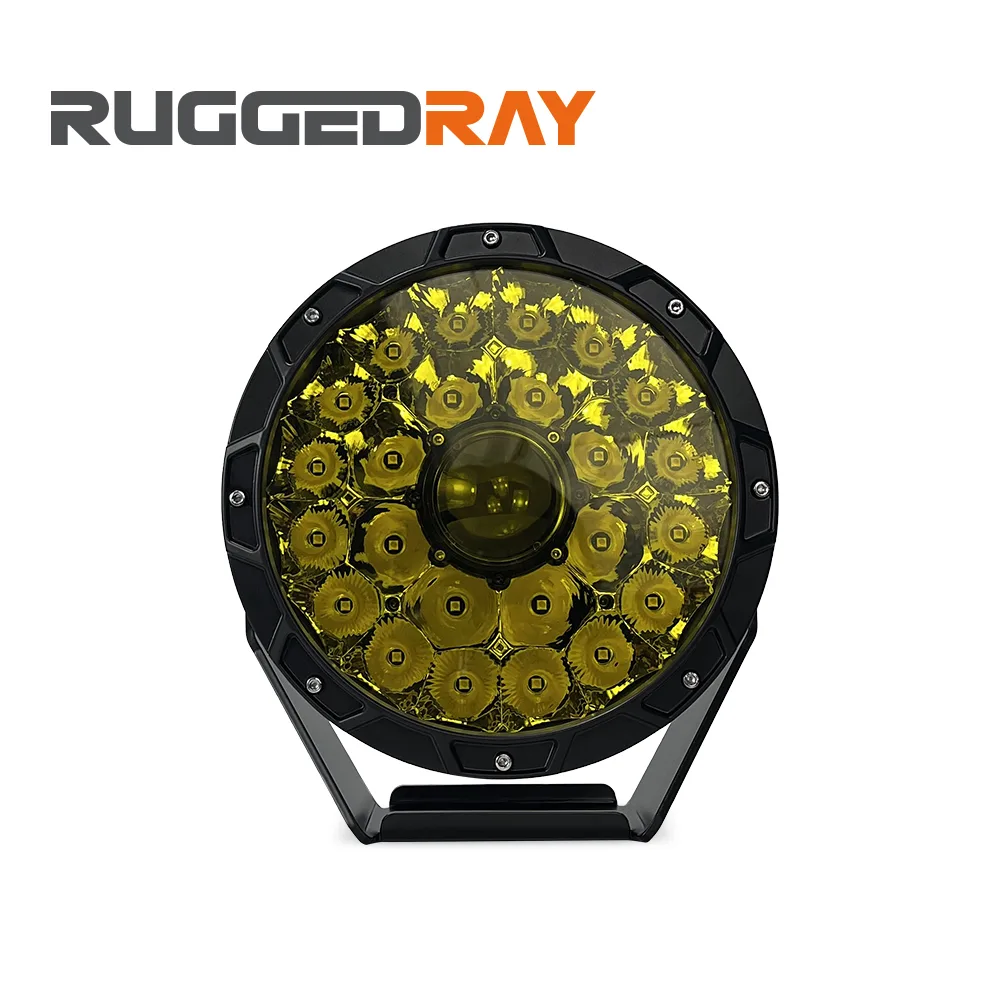

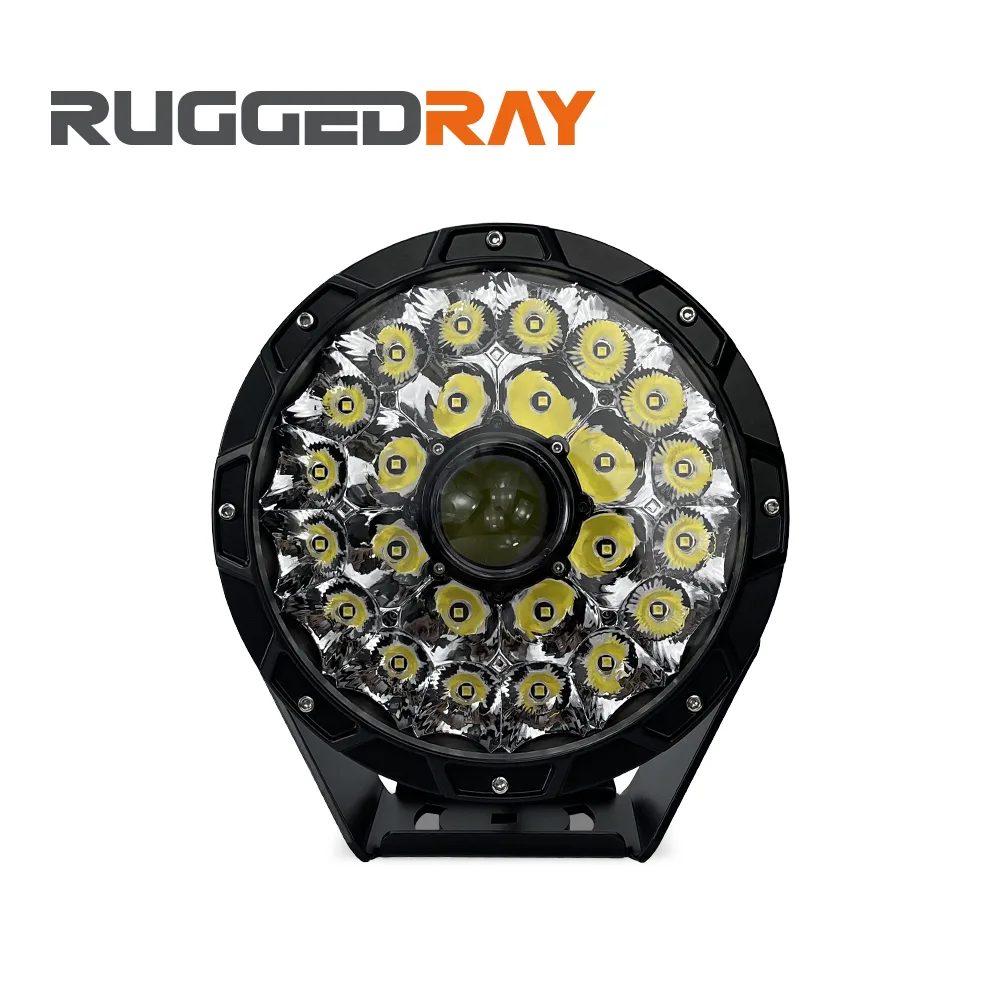

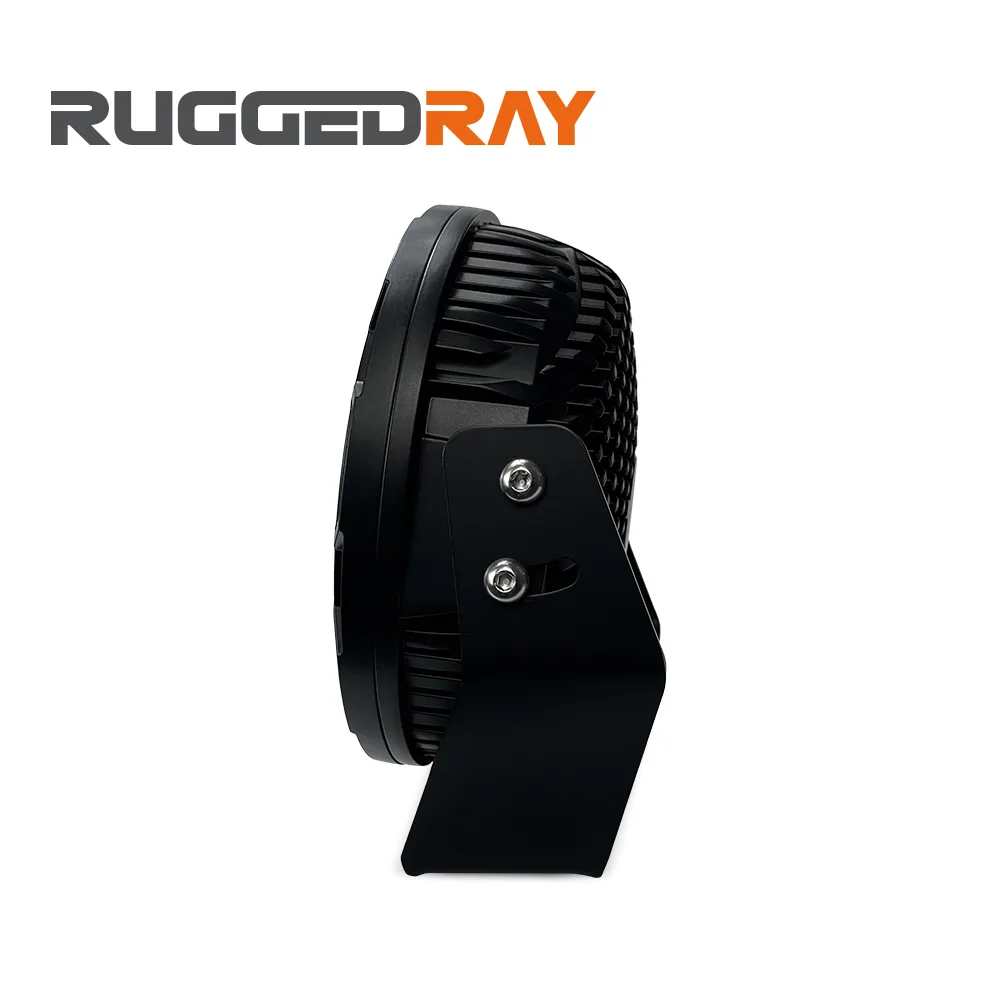

9" LED driving light
- Power
- 140W
- Output
- 9,400 lm
- Voltage
- 9–24V
- Emitter
- Osram
- Warranty
- 5 years
Specifications
| Model | TC-R140 |
|---|---|
| Type | 9" LED driving light |
| Power | 140W |
| Luminous flux | 9,400 lumens |
| Housing size | 9 inch |
| Colour temperature | 6500K |
| Operating voltage | 9–24V DC |
| LED emitter | Osram |
| Ingress protection | To be confirmed — contact us for this figure |
| Warranty | 5 years |
Specifications marked to be confirmed are awaiting written confirmation from the production line. We would rather leave a field blank than publish a number we cannot stand behind — ask us and we will chase it for you.
Manufacturer specification, as supplied
9"LED driving light .Power: 140W Luminous . Flux: 9400 lm . LED chip: 20W/Jingrui in the center . LED chip: 24pcs*5w Osram P8 . Voltage: 9-24V DC . Color temperature: 6500K . Size:
Questions buyers ask
- What voltage does the TC-R140 run on?
- 9–24V DC, so one part number covers 12V 4WDs and 24V trucks without a converter.
- How far does the beam actually reach?
- Beam distance for the TC-R140 has not been measured to the 1-lux convention, so we have not published a figure. We would rather say nothing than quote a number we cannot back.
- Which LED does it use, and why does that matter?
- Osram emitters. Branded emitters hold their output and colour over thousands of hours; unbranded chips typically lose a visible chunk of brightness inside the first season, which is where cheap lights get their reputation.
- Is it sealed well enough for water crossings?
- The ingress rating for this model is being confirmed in writing. Ask us before you order if it matters for your build — it usually does.
- What is covered by the warranty?
- 5 years against manufacturing defects, from date of shipment.
- Do you supply dealers and workshops?
- Yes. Volume pricing, OEM packaging and marketing assets are available for 4WD shops and distributors. Tell us your market and typical order size and we will come back with terms.
Certification
Test certification for this line is being compiled and will be published once we hold the certificates in writing. We do not list a mark we cannot produce the paperwork for.
