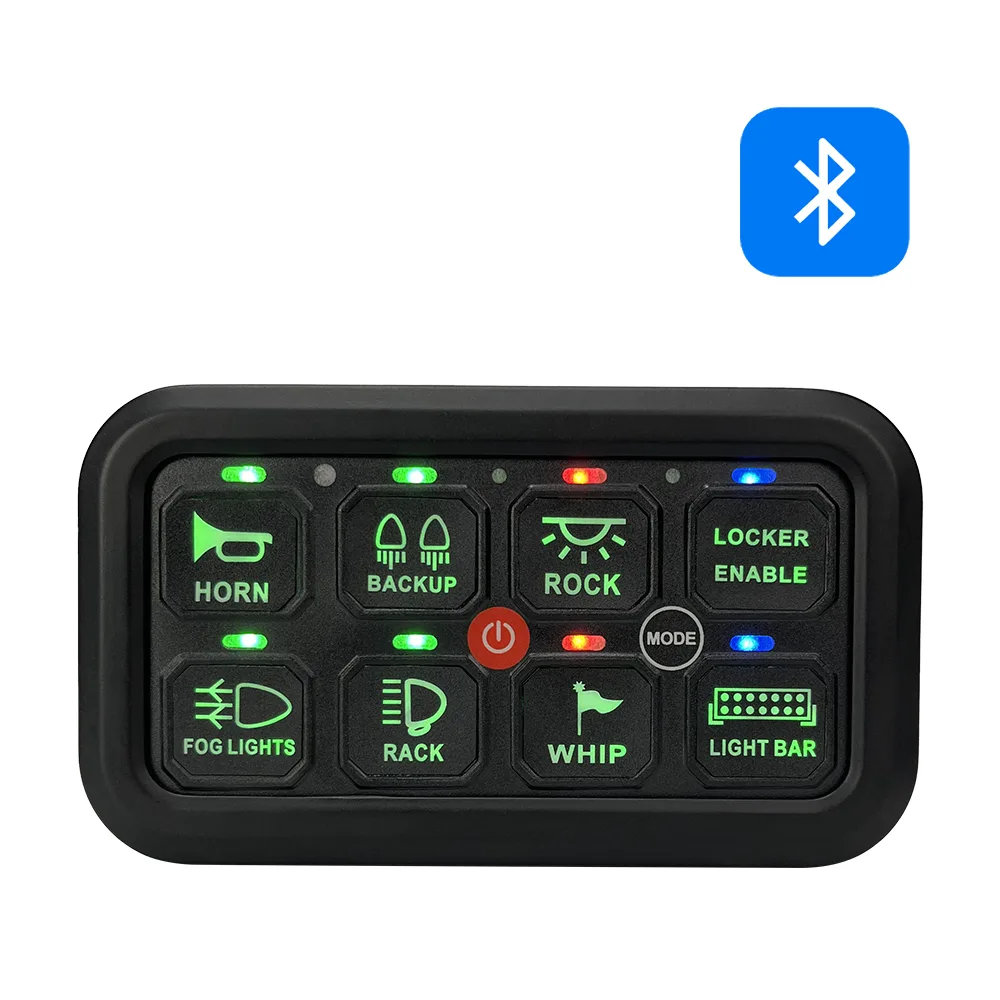

TC-SW8
8-Way Programmable Switch Panel
Each of the eight circuits carries its own current rating, so a winch and a light bar never share a fuse path.
- Circuits
- 8
- Voltage
- 12–24V DC
- Total current
- ≤60A total
- Switching
- Electronic
- Warranty
- 5 years
- Certified
- CE · FCC · RoHS 2.0 · REACH
Programmable 8-gang control with 70 OEM icon options
Eight separately rated circuits
2×30A, 2×20A, 2×10A, 2×5A. A compressor and a light bar sit on their own paths, so one fault does not take the other down.
Solid-state switching
No relay chatter over corrugations, no contacts to pit and burn. It switches silently and keeps switching.
MODE per circuit
Set any channel to flashing, toggle or strobe from the panel — useful for a rear amber when you are stopped on a verge.
70 OEM icon options
Label the panel so it reads like a factory fitment, not an afterthought. Custom sets available for dealer programmes.
What it does
- Solid-state electronic switching — no relay clicking, no contact wear
- Channels rated individually: 2×30A, 2×20A, 2×10A, 2×5A
- MODE button sets Flashing, Toggle or Strobe per circuit
- 70 OEM icon options so the panel reads like a factory fitment

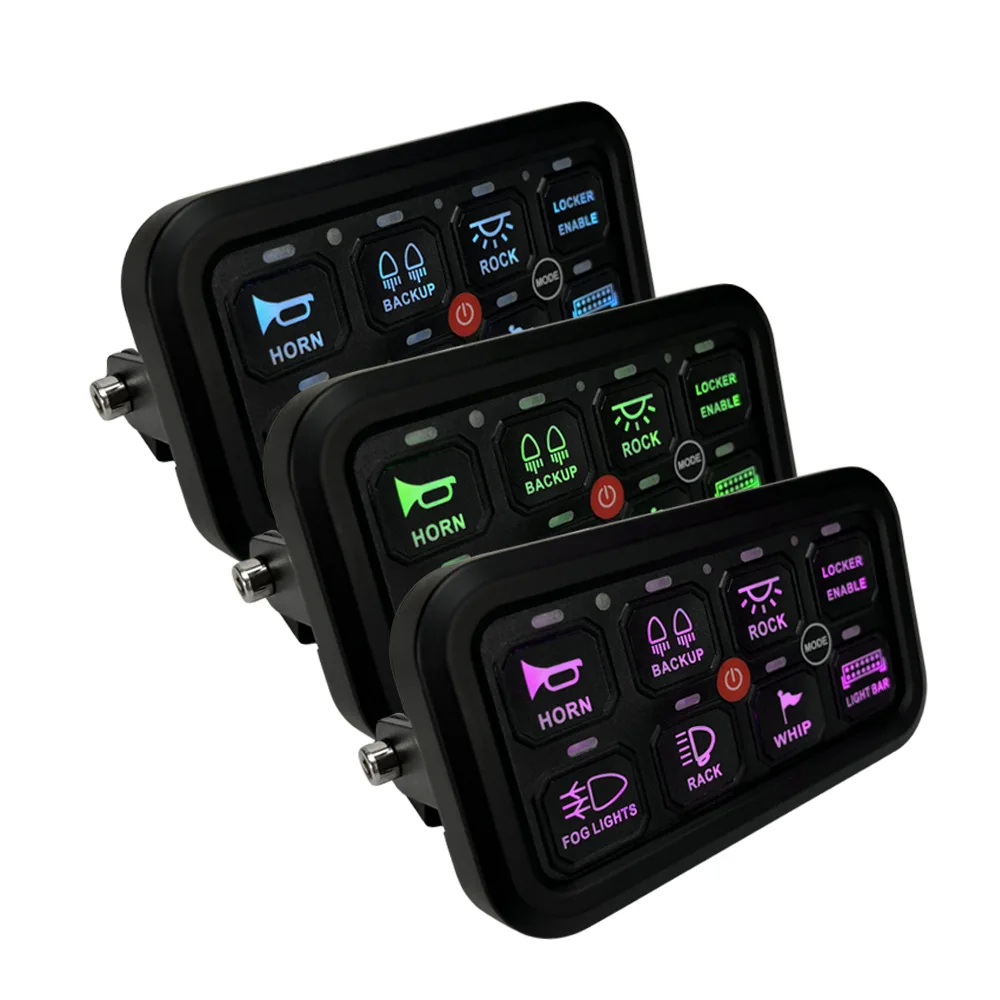

- Preset backlight colour
- Custom icon sets available for dealer programmes
Where it goes
Built for overlanding rigs, 4WD touring builds, utes, trucks and recovery vehicles running 12–24V DC systems. The control box mounts in the engine bay; the switch head sits within reach on the dash or console.
Typical loads on a 8-circuit build: driving lights, a light bar, work lights, an air compressor, a dual-battery fridge, rock lights and camp lighting — each on its own protected channel.
Rated for -40°C to 105°C, so it holds up from a Scandinavian winter to an Australian summer.
Specifications
| Model | TC-SW8 |
|---|---|
| Type | Push-button (Electronic) |
| Circuits | 8 |
| Operating voltage | 12–24V DC |
| Total current | ≤60A total |
| Per-channel rating | 2×30A, 2×20A, 2×10A, 2×5A |
| Power output | 720–1440W |
| Switching technology | Electronic |
| Control | Panel buttons + BLE (optional) |
| Backlight | Preset colour backlight |
| Bluetooth | Optional |
| Icon options | 70 OEM icons |
| Ingress protection | IP65 |
| Operating temperature | -40°C to 105°C |
| Panel dimensions | To be confirmed — contact us for this figure |
| Net weight | 1.8 kg/set |
| Warranty | 5 years |
| Certifications | CE, FCC, RoHS 2.0, REACH |
Specifications marked to be confirmed are awaiting written confirmation from the production line. We would rather leave a field blank than publish a number we cannot stand behind — ask us and we will chase it for you.
Certification
Tested as part of the RuggedRay 12V smart switch panel family. Certificate numbers and the issuing laboratory are published so a distributor can verify them directly; full copies are supplied with dealer enquiries.
RuggedRay products are designed, manufactured and certified under Guangzhou Trutec Electronics Technology Co., Ltd.
| Mark | Scope | Certificate | Issued by | Issued |
|---|---|---|---|---|
| CE | EMC Directive 2014/30/EU | HTT2024121386E | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| FCC | Supplier's Declaration of Conformity | HTT2024121386F | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| RoHS 2.0 | Directive 2011/65/EU Annex II, as amended by (EU)2015/863 and (EU)2017/2102 | HTT2024121386R | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| REACH | SVHC screening, 240 substances | Report on file | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
Questions buyers ask
- Will the TC-SW8 run on a 24V truck?
- Yes. The TC-SW8 accepts 12–24V DC, so the same part number covers 12V 4WDs and 24V trucks without a converter.
- Can I run a winch through it?
- Not directly. The highest-rated channel on the TC-SW8 is 2×30A, which suits lighting, compressors, fridges and pumps. A winch needs its own solenoid or contactor fed straight from the battery — the panel can switch that contactor.
- What happens if a circuit overloads?
- Each circuit carries its own fuse in the control box, so an overload opens that one circuit and leaves the rest running. Fuses are standard blade type — carry a couple of spares and you can swap one on the track in under a minute.
- Is it waterproof?
- The TC-SW8 is rated IP65. The control box is built for engine-bay mounting and the switch head mounts inside the cabin.
- Do you supply custom icons and packaging?
- Yes. The TC-SW8 ships with 70 oem icons as standard, and custom icon sets, logo printing and retail packaging are available for dealer and distributor programmes. Talk to us about volumes.
- What is the warranty?
- 5 years from date of shipment, covering the control box, switch head and loom against manufacturing defects.
