TC-SW8B
8-Way Switch Panel (B Version)
The same per-channel current ratings as the TC-SW8, in a wired-only build with one less thing to fail.
- Circuits
- 8
- Voltage
- 12–24V DC
- Total current
- ≤60A total
- Switching
- Electronic
- Warranty
- 5 years
- Certified
- CE · FCC · RoHS 2.0 · REACH

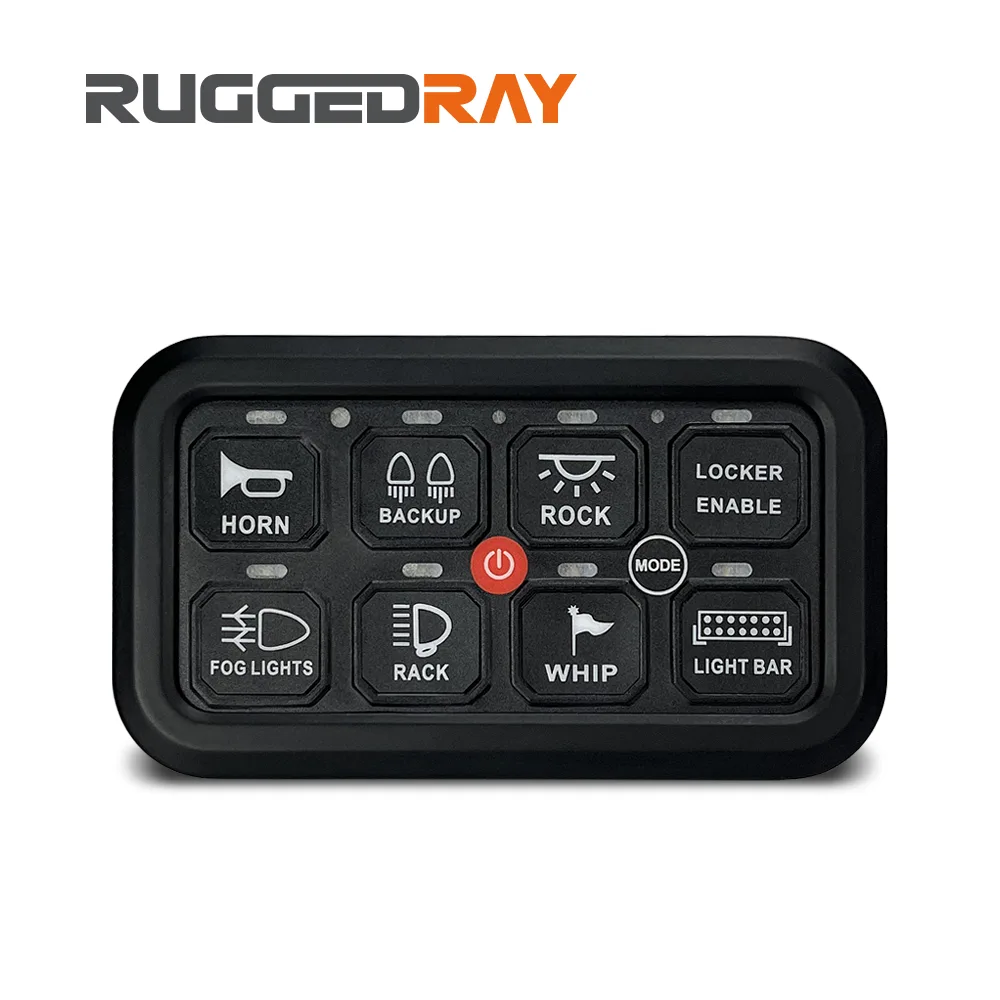

Streamlined 8-gang panel with preset backlight
Eight separately rated circuits
2×30A, 2×20A, 2×10A, 2×5A — the same channel layout as the TC-SW8.
Solid-state switching
Silent over corrugations, with no relay contacts to pit or weld.
Wired only, on purpose
No radio module. One fewer thing to pair, to charge, or to fail on a trip.
70 OEM icon options
Same icon library as the TC-SW8, so a dealer can stock one set of decals for both.
What it does
- Solid-state electronic switching, same channel ratings as the TC-SW8
- Channels rated individually: 2×30A, 2×20A, 2×10A, 2×5A

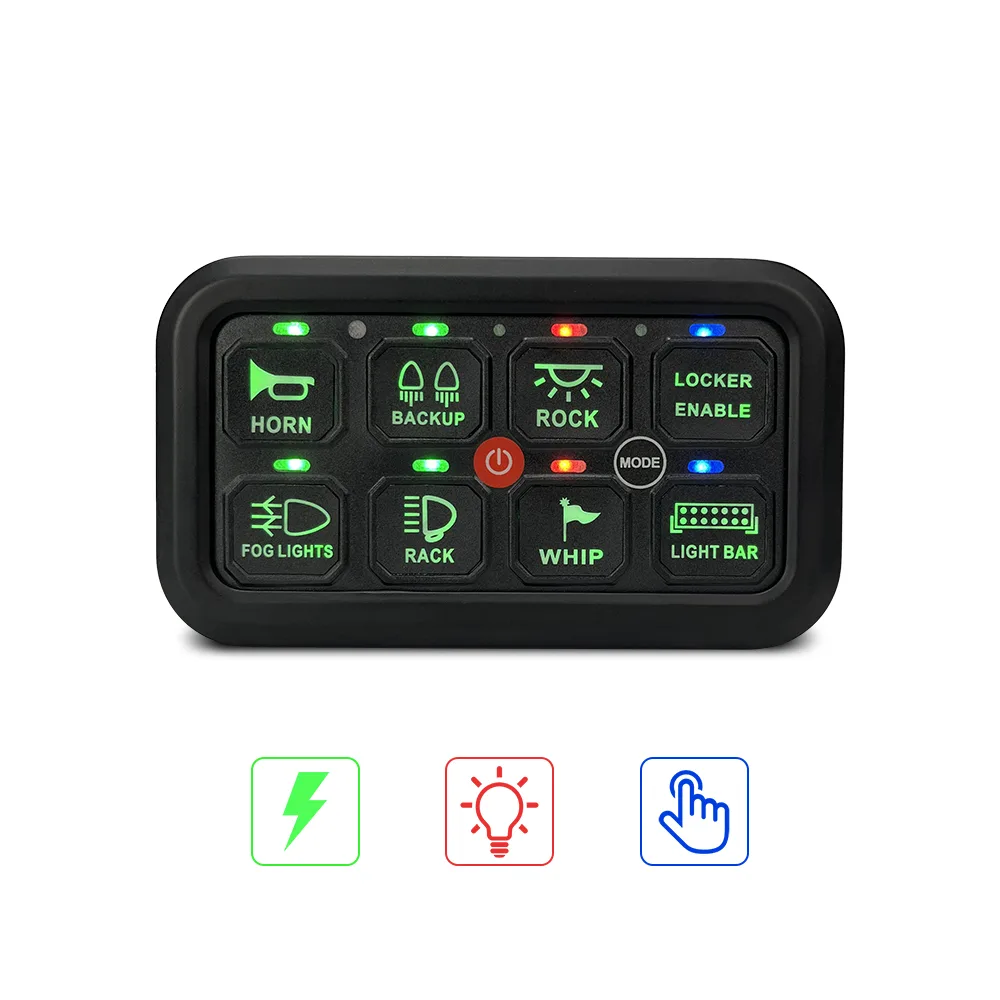

- MODE button sets Flashing, Toggle or Strobe per circuit
- 70 OEM icon options
- Preset backlight colour
- Wired control only — no Bluetooth module
Where it goes
Built for overlanding rigs, 4WD touring builds, utes, trucks and recovery vehicles running 12–24V DC systems. The control box mounts in the engine bay; the switch head sits within reach on the dash or console.

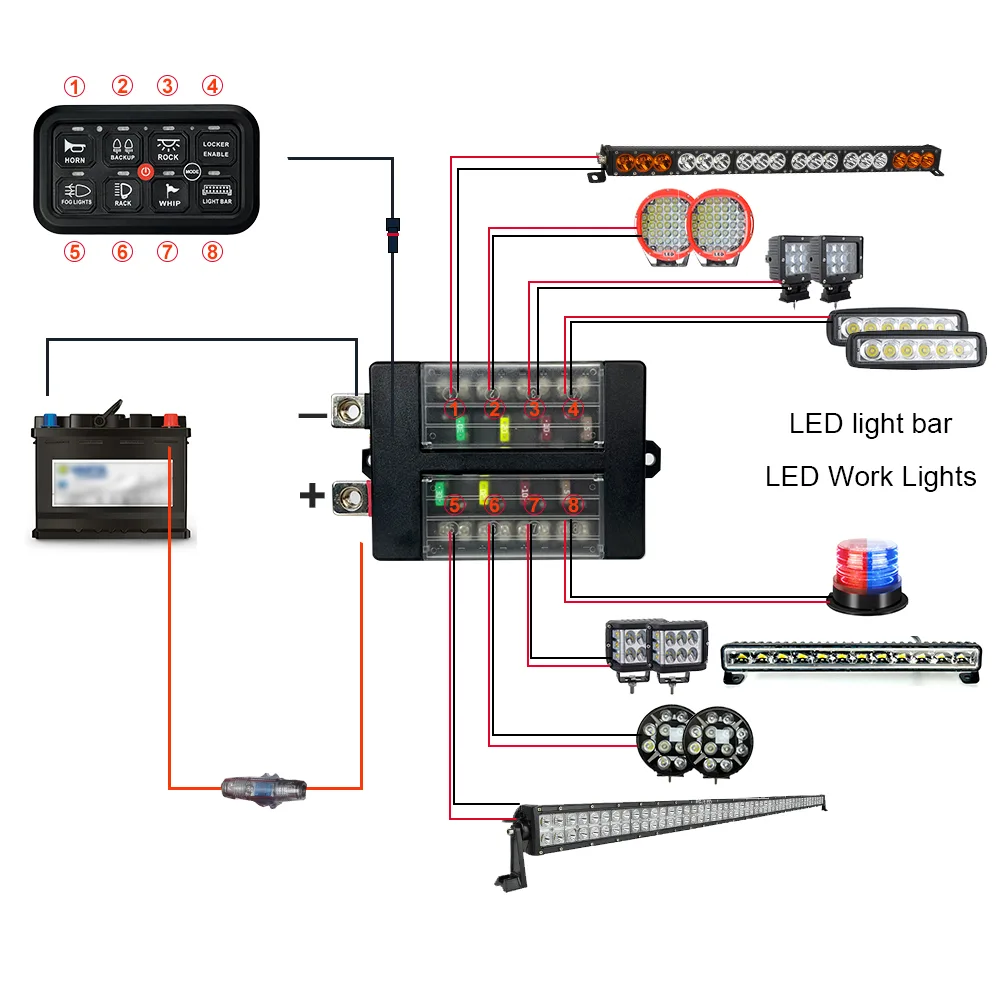

Typical loads on a 8-circuit build: driving lights, a light bar, work lights, an air compressor, a dual-battery fridge, rock lights and camp lighting — each on its own protected channel.
Rated for -40°C to 105°C, so it holds up from a Scandinavian winter to an Australian summer.
Specifications
| Model | TC-SW8B |
|---|---|
| Type | Push-button (Electronic) |
| Circuits | 8 |
| Operating voltage | 12–24V DC |
| Total current | ≤60A total |
| Per-channel rating | 2×30A, 2×20A, 2×10A, 2×5A |
| Power output | 720–1440W |
| Switching technology | Electronic |
| Control | Panel buttons |
| Backlight | Preset colour backlight |
| Icon options | 70 OEM icons |
| Ingress protection | IP65 |
| Operating temperature | -40°C to 105°C |

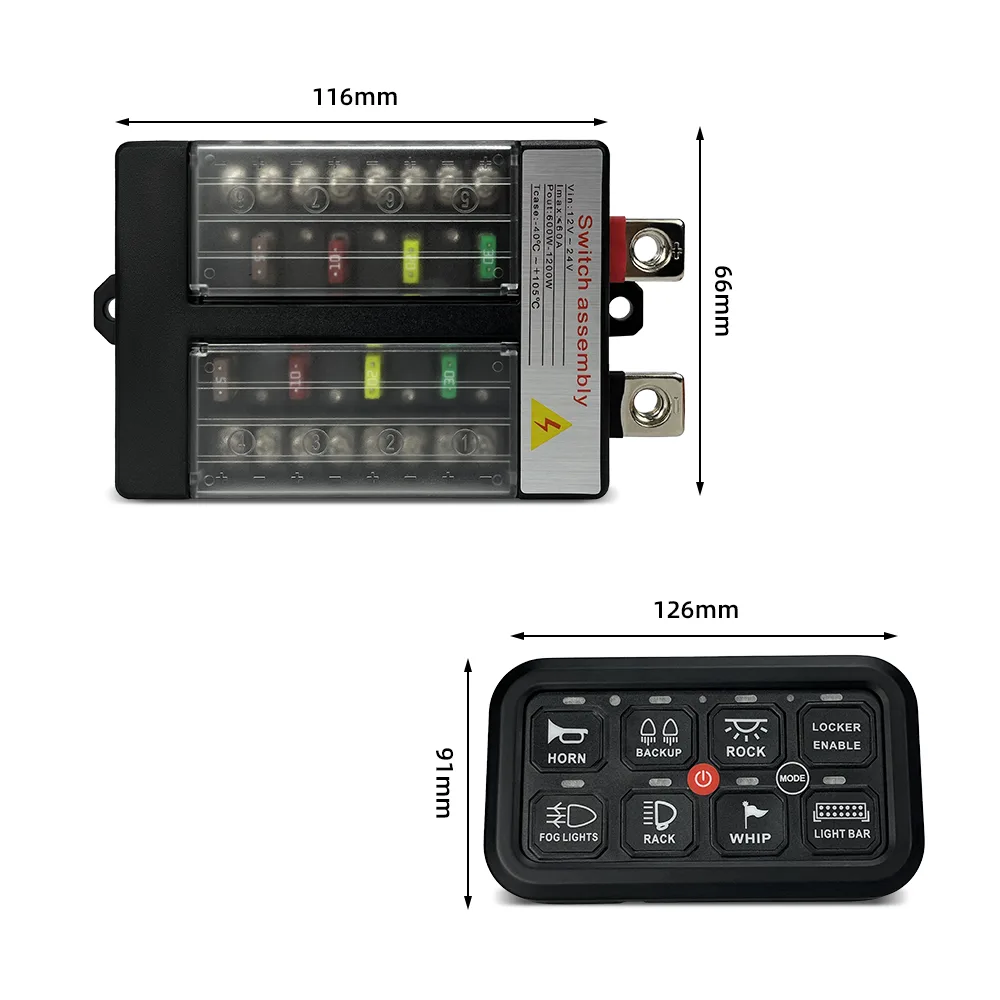

| Panel dimensions | To be confirmed — contact us for this figure |
| Net weight | 1.8 kg/set |
| Warranty | 5 years |
| Certifications | CE, FCC, RoHS 2.0, REACH |
Specifications marked to be confirmed are awaiting written confirmation from the production line. We would rather leave a field blank than publish a number we cannot stand behind — ask us and we will chase it for you.
Certification
Tested as part of the RuggedRay 12V smart switch panel family. Certificate numbers and the issuing laboratory are published so a distributor can verify them directly; full copies are supplied with dealer enquiries.
RuggedRay products are designed, manufactured and certified under Guangzhou Trutec Electronics Technology Co., Ltd.
| Mark | Scope | Certificate | Issued by | Issued |
|---|---|---|---|---|
| CE | EMC Directive 2014/30/EU | HTT2024121386E | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| FCC | Supplier's Declaration of Conformity | HTT2024121386F | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| RoHS 2.0 | Directive 2011/65/EU Annex II, as amended by (EU)2015/863 and (EU)2017/2102 | HTT2024121386R | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
| REACH | SVHC screening, 240 substances | Report on file | Shenzhen HTT Technology Co., Ltd | 2024-12-31 |
Questions buyers ask
- Will the TC-SW8B run on a 24V truck?
- Yes. The TC-SW8B accepts 12–24V DC, so the same part number covers 12V 4WDs and 24V trucks without a converter.
- Can I run a winch through it?
- Not directly. The highest-rated channel on the TC-SW8B is 2×30A, which suits lighting, compressors, fridges and pumps. A winch needs its own solenoid or contactor fed straight from the battery — the panel can switch that contactor.
- What happens if a circuit overloads?
- Each circuit carries its own fuse in the control box, so an overload opens that one circuit and leaves the rest running. Fuses are standard blade type — carry a couple of spares and you can swap one on the track in under a minute.
- Is it waterproof?
- The TC-SW8B is rated IP65. The control box is built for engine-bay mounting and the switch head mounts inside the cabin.
- Do you supply custom icons and packaging?
- Yes. The TC-SW8B ships with 70 oem icons as standard, and custom icon sets, logo printing and retail packaging are available for dealer and distributor programmes. Talk to us about volumes.
- What is the warranty?
- 5 years from date of shipment, covering the control box, switch head and loom against manufacturing defects.
Wired or wireless?
The TC-SW8B has a direct counterpart with the same eight circuits and the same per-channel ratings — the only difference is how you reach the buttons. Compare them side by side before you order.
